Product Info

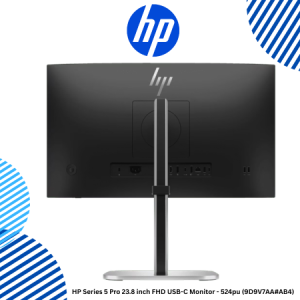

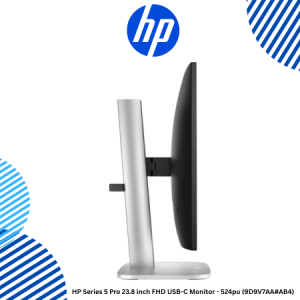

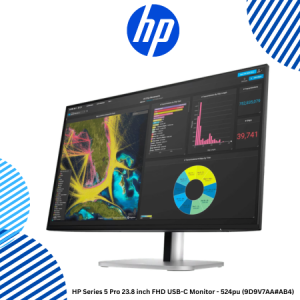

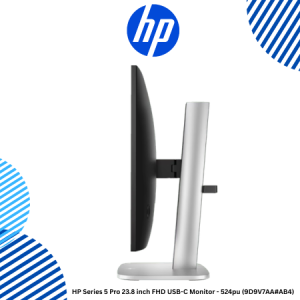

Title = HP Series 5 Pro 23.8 inch FHD USB-C Monitor – 524pu – 23.8″ (9D9V7AA)
Sku = 9D9V7AA
Series = HP Series 5 Pro
Recommended Usage = Business
Title = HP Series 5 Pro 23.8 inch FHD USB-C Monitor – 524pu – 23.8″ (9D9V7AA)
Sku = 9D9V7AA
Series = HP Series 5 Pro
Recommended Usage = Business
Display Specifications
Display type = IPS
Display area (metric) = 52.70 x 29.65 cm
Aspect ratio = 16:9
Resolution (maximum) = FHD (1920 x 1080 @ 100 Hz)
Aspect ratio = 16:9
Flicker-free = Yes
Low blue light = Yes, HP Eye Ease (TÜV Low Blue Light Hardware Solution certified)
Resolution (native) = FHD (1920 x 1080)
Resolutions supported = 640 x 480 @ 60 Hz; 640 x 480 @ 75 Hz; 720 x 400 @ 70 Hz; 800 x 600 @ 60 Hz; 800 x 600 @ 75 Hz; 1024 x 768 @ 60 Hz; 1280 x 720 @ 60 Hz; 1280 x 1024 @ 60 Hz; 1440 x 900 @ 60 Hz; 1600 x 900 @ 60 Hz; 1680 x 1050 @ 60 Hz; 1920 x 1080 @ 60 Hz; 1920 x 1080 @ 100 Hz; 1280 x 1024 @ 75 Hz; 1024 x 768 @ 75 Hz; 1280 x 800 @ 60 Hz; 1920 x 1080 @ 75 Hz
Pixel pitch = 0.28 x 0.28 mm
Brightness = 350 nits
Contrast ratio = 1500:1
Response time = 5ms GtG (with overdrive)
Low blue light = Yes, HP Eye Ease (TÜV Low Blue Light Hardware Solution certified)
Display scan frequency (horizontal) = 30-115 kHz
Display scan frequency (vertical) = 50-100 Hz
Display colors = Up to 16.7 million colors supported
Onscreen controls = Brightness+; Color; Image; Input; Power; Menu; Management; Information; Exit
Display features = Single Power ON; Anti-glare; Height Adjust/Tilt/Swivel/Pivot; HP Eye Ease; Daisy chain
Display type = IPS
Display area (metric) = 52.70 x 29.65 cm
Aspect ratio = 16:9
Resolution (maximum) = FHD (1920 x 1080 @ 100 Hz)
Aspect ratio = 16:9
Flicker-free = Yes
Low blue light = Yes, HP Eye Ease (TÜV Low Blue Light Hardware Solution certified)
Resolution (native) = FHD (1920 x 1080)
Resolutions supported = 640 x 480 @ 60 Hz; 640 x 480 @ 75 Hz; 720 x 400 @ 70 Hz; 800 x 600 @ 60 Hz; 800 x 600 @ 75 Hz; 1024 x 768 @ 60 Hz; 1280 x 720 @ 60 Hz; 1280 x 1024 @ 60 Hz; 1440 x 900 @ 60 Hz; 1600 x 900 @ 60 Hz; 1680 x 1050 @ 60 Hz; 1920 x 1080 @ 60 Hz; 1920 x 1080 @ 100 Hz; 1280 x 1024 @ 75 Hz; 1024 x 768 @ 75 Hz; 1280 x 800 @ 60 Hz; 1920 x 1080 @ 75 Hz
Pixel pitch = 0.28 x 0.28 mm
Brightness = 350 nits
Contrast ratio = 1500:1
Response time = 5ms GtG (with overdrive)
Low blue light = Yes, HP Eye Ease (TÜV Low Blue Light Hardware Solution certified)
Display scan frequency (horizontal) = 30-115 kHz
Display scan frequency (vertical) = 50-100 Hz
Display colors = Up to 16.7 million colors supported
Onscreen controls = Brightness+; Color; Image; Input; Power; Menu; Management; Information; Exit
Display features = Single Power ON; Anti-glare; Height Adjust/Tilt/Swivel/Pivot; HP Eye Ease; Daisy chain
Stand & Mount
VESA mount = 100 x 100 mm
Tilt = -5 to +23°
Swivel = ±45°
Pivot = ±90°
Resolution & Frame Rate = 150 mm
VESA mount = 100 x 100 mm
Tilt = -5 to +23°
Swivel = ±45°
Pivot = ±90°
Resolution & Frame Rate = 150 mm
Power and Operating Requirements
Power = 100 – 240 VAC 50/60 Hz
Power Consumption Description = 198 W (maximum), 22 W (typical), 0.5 W (standby)
Operating temperature range = 5 to 35°C
Power = 100 – 240 VAC 50/60 Hz
Power Consumption Description = 198 W (maximum), 22 W (typical), 0.5 W (standby)
Operating temperature range = 5 to 35°C
Dimensions and Weight
Dimensions without stand (W x D x H) = 53.94 x 4.72 x 31.43 cm (without stand)
Dimensions with stand (W x D x H) = 53.94 x 18.95 x 50.32 cm
Resolution & Frame Rate = 150 mm
Weight = 5.93 kg (with stand)
Dimensions without stand (W x D x H) = 53.94 x 4.72 x 31.43 cm (without stand)
Dimensions with stand (W x D x H) = 53.94 x 18.95 x 50.32 cm
Resolution & Frame Rate = 150 mm
Weight = 5.93 kg (with stand)
Warranty and Security
Warranty = HP three-year limited warranty
Physical security = Security lock-ready
Warranty = HP three-year limited warranty
Physical security = Security lock-ready
What’s included
What’s in the box = Warranty card; AC power cable; Quick Setup Poster; 1 USB Type-C® to Type-C cable; VESA mount adapter
What is in the box footnote number = [4] Included cables may vary by country.
What’s in the box = Warranty card; AC power cable; Quick Setup Poster; 1 USB Type-C® to Type-C cable; VESA mount adapter
What is in the box footnote number = [4] Included cables may vary by country.
Energy efficiency and certifications
Environmental = Low halogen; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; Outside box and corrugated cushions are 100% sustainably sourced and recyclable; 85% ITE-derived closed loop plastic; Contains ocean-bound plastic; Contains 20% recycled glass in the monitor panel; At least 40% recycled metal including 90% recycled aluminum in the stand
Environmental specification footnote number = [8] Percentage of recycled glass in the monitor panel varies by product. Recycled glass is expressed as a percentage of the total weight of the glass.<br/>[9] Ocean Bound plastic is expressed as a percentage of the total weight plastic. Ocean Bound plastic is based on the definition set by the UL2809 standard.<br/>[10] External power supplies, WWAN modules, power cords, cables and peripherals excluded. Service parts obtained after purchase may not be Low Halogen.<br/>[11] 100% outer box packaging and corrugated cushions made from sustainably sourced certified and recycled fibers.
Certifications and compliances = Australian-New Zealand MEPS; BIS; BSMI; CB; CCC; CE; CECP; CEL Grade 1; cTUVus; EAC; FCC; ICES; ISO 9241-307; KC; KCC; NOM; PSB; RCM; SEPA; TUV-S; VCCI; Vietnam MEPS; WEEE; ISC; California Energy Commission (CEC); UAE; Ukraine certificates; TÜV Flicker free certified; NRCS; PSE; GS; Ukraine EE; TÜV Low Blue Light Hardware Solution certified; Korea MEPS; Australian-New Zealand DoC; EMF
Environmental = Low halogen; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; Outside box and corrugated cushions are 100% sustainably sourced and recyclable; 85% ITE-derived closed loop plastic; Contains ocean-bound plastic; Contains 20% recycled glass in the monitor panel; At least 40% recycled metal including 90% recycled aluminum in the stand
Environmental specification footnote number = [8] Percentage of recycled glass in the monitor panel varies by product. Recycled glass is expressed as a percentage of the total weight of the glass.<br/>[9] Ocean Bound plastic is expressed as a percentage of the total weight plastic. Ocean Bound plastic is based on the definition set by the UL2809 standard.<br/>[10] External power supplies, WWAN modules, power cords, cables and peripherals excluded. Service parts obtained after purchase may not be Low Halogen.<br/>[11] 100% outer box packaging and corrugated cushions made from sustainably sourced certified and recycled fibers.
Certifications and compliances = Australian-New Zealand MEPS; BIS; BSMI; CB; CCC; CE; CECP; CEL Grade 1; cTUVus; EAC; FCC; ICES; ISO 9241-307; KC; KCC; NOM; PSB; RCM; SEPA; TUV-S; VCCI; Vietnam MEPS; WEEE; ISC; California Energy Commission (CEC); UAE; Ukraine certificates; TÜV Flicker free certified; NRCS; PSE; GS; Ukraine EE; TÜV Low Blue Light Hardware Solution certified; Korea MEPS; Australian-New Zealand DoC; EMF
