Default

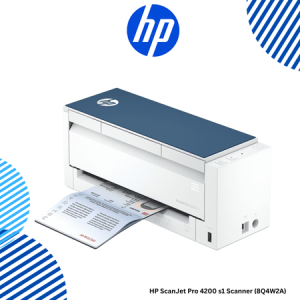

Product number = 8Q4W2A
Scanner type = ADF; Sheetfed
Product number = 8Q4W2A
Scanner type = ADF; Sheetfed
Scan Resolution
Scan Resolution, Optical = Up to 600 dpi
Scan Resolution, Optical = Up to 600 dpi
Scan Resolution, Hardware = Up to 600 x 600 dpi
Output Resolution Dpi Settings = 75; 150; 200; 240; 300; 400; 500; 600; 1200 ppi
Output Resolution Dpi Settings = 75; 150; 200; 240; 300; 400; 500; 600; 1200 ppi
Scan Speed
Automatic document feeder scan speed = Up to 40 ppm/80 ipm (b&w, color, 300 dpi); Up to 20 ppm/40 ipm (low-speed mode)
Automatic document feeder scan speed = Up to 40 ppm/80 ipm (b&w, color, 300 dpi); Up to 20 ppm/40 ipm (low-speed mode)
Scanner Specifications
Duty cycle (daily) = Recommended daily duty cycle: 4500 pages
Bit Depth = 24-bit (external), 48-bit (internal)
Auto document feeder capacity = Standard, 50 sheets
Scan size (ADF), maximum = 216 x 5842 mm (ADF); 216 x 5842 mm (Front slot)
Scan size ADF (minimum) = 52 x 74 mm (ADF); 51 x 51 mm (Front Slot)
Scan size, minimum = 52 x 74 mm (ADF); 51 x 51 mm (Front Slot)
Scan input modes = One default scan mode on front-panel for HP scan in Win OS, HP Easy Scan/ICA in Mac OS and third parties applications via TWAIN.
Scan file format = BMP; CSV; Excel (XLS); Excel ( XLSX); JPEG; PDF; PDF/A; PNG; RTF; Searchable PDF; TIFF; TXT; Word (DOC); Word (DOCX)
Scanning options (ADF) = Single-pass duplex
Duplex ADF scanning = Yes
Scan technology = ADF; Contact Image Sensor (CIS)
Levels of grayscale = 256
Color scanning = Yes
Multifeed detection = Yes
Light source (scanning) = Light Emitting Diode (LED)
Scanner advanced features = Scan to USB 3.0; OCR; Intelligent scanning recognizing the difference of text, lines and images for multi-layer document storage; automatic scan calibration; automatic document; blank page removal; barcode detection; batch separation; document merge; HP Precision Feed technology; destination scanning
Processor speed = 666 MHz
Memory = 512 MB
Duty cycle (daily) = Recommended daily duty cycle: 4500 pages
Bit Depth = 24-bit (external), 48-bit (internal)
Auto document feeder capacity = Standard, 50 sheets
Scan size (ADF), maximum = 216 x 5842 mm (ADF); 216 x 5842 mm (Front slot)
Scan size ADF (minimum) = 52 x 74 mm (ADF); 51 x 51 mm (Front Slot)
Scan size, minimum = 52 x 74 mm (ADF); 51 x 51 mm (Front Slot)
Scan input modes = One default scan mode on front-panel for HP scan in Win OS, HP Easy Scan/ICA in Mac OS and third parties applications via TWAIN.
Scan file format = BMP; CSV; Excel (XLS); Excel ( XLSX); JPEG; PDF; PDF/A; PNG; RTF; Searchable PDF; TIFF; TXT; Word (DOC); Word (DOCX)
Scanning options (ADF) = Single-pass duplex
Duplex ADF scanning = Yes
Scan technology = ADF; Contact Image Sensor (CIS)
Levels of grayscale = 256
Color scanning = Yes
Multifeed detection = Yes
Light source (scanning) = Light Emitting Diode (LED)
Scanner advanced features = Scan to USB 3.0; OCR; Intelligent scanning recognizing the difference of text, lines and images for multi-layer document storage; automatic scan calibration; automatic document; blank page removal; barcode detection; batch separation; document merge; HP Precision Feed technology; destination scanning
Processor speed = 666 MHz
Memory = 512 MB
Connectivity and Communications
Connectivity, standard = 1 SuperSpeed USB 3.0
Twain version = Version 2.4
Control panel = 1 light (Error); 3 button (Power, Scan, Cancel)
Connectivity, standard = 1 SuperSpeed USB 3.0
Twain version = Version 2.4
Control panel = 1 light (Error); 3 button (Power, Scan, Cancel)
Power
Power = Input Voltage: 100 to 240 VAC, 50/60Hz
Power supply type = External power adapter
Power Consumption Description = 4.6 watts (ready),1.15 watts (sleep), 0.065 watts (off)
Power supply type = External power adapter
Power Consumption Description = 4.6 watts (ready),1.15 watts (sleep), 0.065 watts (off)
Supported Printing Media
Media weights, supported, ADF = 28 to 120 g/m² (ADF); 28 to 430 g/m² (Front slot)
Media types = Paper (banner, brochure, inkjet, plain), photo paper (borderless, HP premium, panoramic, plus tab),envelopes, labels, cards (greeting, index), ID cards, passport
Media weights, supported, ADF = 28 to 120 g/m² (ADF); 28 to 430 g/m² (Front slot)
Media types = Paper (banner, brochure, inkjet, plain), photo paper (borderless, HP premium, panoramic, plus tab),envelopes, labels, cards (greeting, index), ID cards, passport
Environmental
Operating temperature range = 10 to 35°C
Storage temperature range = -40 to 60°C
Operating humidity range = 15 to 80% RH (non-condensing)
Non-Operating Humidity Range = 0 to 90% RH (non-condensing)
Acoustic power emissions = 6.5 B(A)
Operating temperature range = 10 to 35°C
Storage temperature range = -40 to 60°C
Operating humidity range = 15 to 80% RH (non-condensing)
Non-Operating Humidity Range = 0 to 90% RH (non-condensing)
Acoustic power emissions = 6.5 B(A)
System Requirements
Compatible Operating Systems = Windows 11; Windows 10; Windows 8.1; Windows Server; macOS 10.15 Catalina; macOS 11 Big Sur; macOS 12 Monterey; macOS 13 Ventura; macOS 14 Sonoma; macOS 15 Sequoia; Linux
Minimum System Requirements = Microsoft Windows 11, 10, 8.1, 2008 R2, 2012 R2, 2016, 2019; 2 GB available hard disk space, Internet Required, Web Browser, USB
Mac compatible = Yes
Minimum System Requirements for Macintosh = macOS 10.15 Catalina; macOS 11 Big Sur; macOS 12 Monterey; macOS 13 Ventura; macOS 14 Sonoma; Internet Required; USB
Compatible Operating Systems = Windows 11; Windows 10; Windows 8.1; Windows Server; macOS 10.15 Catalina; macOS 11 Big Sur; macOS 12 Monterey; macOS 13 Ventura; macOS 14 Sonoma; macOS 15 Sequoia; Linux
Minimum System Requirements = Microsoft Windows 11, 10, 8.1, 2008 R2, 2012 R2, 2016, 2019; 2 GB available hard disk space, Internet Required, Web Browser, USB
Mac compatible = Yes
Minimum System Requirements for Macintosh = macOS 10.15 Catalina; macOS 11 Big Sur; macOS 12 Monterey; macOS 13 Ventura; macOS 14 Sonoma; Internet Required; USB
Dimensions and Weight
Dimensions without stand (W x D x H) = 305 x 107 x 128 mm
Maximum dimensions (W x D x H) = 305 x 287 x 272 mm (with all trays opened and extended)
Maximum dimensions (W x D x H) = 305 x 287 x 272 mm (with all trays opened and extended)
Weight = ~2 kg
Box contents
What’s in the box = Power adapter; USB cable; User Guide; regulatory flyer
Cable included = Yes, 1 USB cable; 1 USB scanner to PC cable
Software included = HP Scan Software, HP Scanner Tools Utility, HP Scan Assistant,HP WIA scan driver,HPTWAIN scan driver, ISIS driverICA driver, HP Easy Scan for Mac OS,HPUI Scan for Linux
What’s in the box = Power adapter; USB cable; User Guide; regulatory flyer
Cable included = Yes, 1 USB cable; 1 USB scanner to PC cable
Software included = HP Scan Software, HP Scanner Tools Utility, HP Scan Assistant,HP WIA scan driver,HPTWAIN scan driver, ISIS driverICA driver, HP Easy Scan for Mac OS,HPUI Scan for Linux
Warranty
Warranty = 1 year onsite warranty
Warranty = 1 year onsite warranty
Certification and Compliance
Environmental = FSC Certified Packaging; 30% post-consumer recycled plastic
Safety Approvals and Requirements = IEC 62368-1:2018 / EN IEC 62368-1:2020+A11:2020
Electromagnetic Emission Standard = EN 55032:2015 +A11:2020 EN 55035:2017 +A11:2020 EN 61000-3-2:2014 EN 61000-3-2:2019 +A1:2021 EN 61000-3-3:2013 +A2:2021 CISPR 32:2015 +AMD1:2019 CISPR 32:2019 ED2.1 EN 301 489-1 V2.2.3 EN 301 489-17 V3.2.4 FCC CFR 47 Part 15 ICES-003, Issue 7
ENERGY STAR® certified = Yes
Environmental = FSC Certified Packaging; 30% post-consumer recycled plastic
Safety Approvals and Requirements = IEC 62368-1:2018 / EN IEC 62368-1:2020+A11:2020
Electromagnetic Emission Standard = EN 55032:2015 +A11:2020 EN 55035:2017 +A11:2020 EN 61000-3-2:2014 EN 61000-3-2:2019 +A1:2021 EN 61000-3-3:2013 +A2:2021 CISPR 32:2015 +AMD1:2019 CISPR 32:2019 ED2.1 EN 301 489-1 V2.2.3 EN 301 489-17 V3.2.4 FCC CFR 47 Part 15 ICES-003, Issue 7
ENERGY STAR® certified = Yes
Security Management
Country of origin = Made in China; Made in Taiwan
Country of origin = Made in China; Made in Taiwan
