The large, easy-to-read display for captivating interactive lessons.
Offering a large full HD interactive display up to 100″, the EB-770Fi provides up to 75 percent more interactive space than a 75″ flat panel—while providing a low cost per square inch. With 4,100 lumens of color and white brightness1 and proprietary 3-chip 3LCD technology, the EB-770Fi delivers a remarkably bright and colorful picture that can be easily viewed in ambient light conditions, from nearly anywhere in the classroom.
Flexible and convenient, it supports standard 16:9 as well as ultra wide 21:9 and 16:6 displays with split screen2 to simultaneously display content from a PC or document camera beside an interactive whiteboard canvas. It also includes a 20,000-hour, virtually maintenance-free laser light source, so there are no lamps to purchase or replace—ever3.
- 4,100 lumens of colour and white brightness1
- Full HD 1080p resolution for exceptional image quality
- Ultra wide 21:9 and 16:6 display with split screen2 support
- Large interactive display up to 100″ (16:9), 110″ (16:6 and 21:9)
- Multi-user capability for easy collaboration

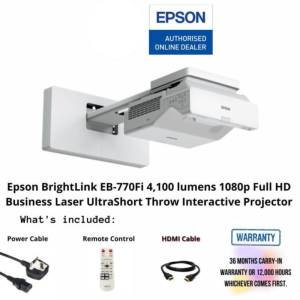

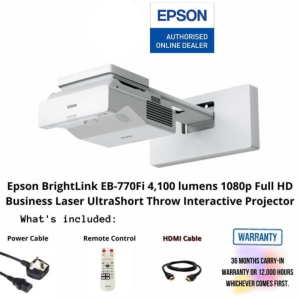

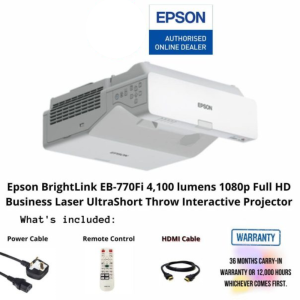

📌 EPSON EB-770Fi INTERACTIVE ULTRA SHORT THROW
FULL HD 3LCD LASER PROJECTOR
✅ Model
Epson EB-770Fi
✅ Product Type
Interactive Ultra Short Throw Laser Projector
✅ Projection Technology
3LCD
RGB Liquid Crystal Shutter
3-Chip Technology
✅ LCD Panel
0.62″ C2 Fine
✅ Light Source
Laser Diode
✅ Native Resolution
Full HD (1920 × 1080)
✅ Aspect Ratio
16:9
✅ Supported Display Ratios
16:10
16:6 Ultra-Wide
21:9 Ultra-Wide
✅ Brightness
4,100 ANSI Lumens
White Brightness: 4,100 lm
Colour Brightness: 4,100 lm
Extended Mode: 2,800 lm
✅ Contrast Ratio
Over 5,000,000:1
✅ Throw Ratio
0.25 – 0.35
✅ Projection Size
Without Interactive Function:
60″ – 150″ @ 16:9
55″ – 140″ @ 16:10
56″ – 140″ @ 16:6
57″ – 142″ @ 21:9
With Interactive Function:
60″ – 100″ @ 16:9
55″ – 100″ @ 16:10
56″ – 110″ @ 16:6
57″ – 110″ @ 21:9
✅ Standard Projection
77″ image from approximately 43.3 cm
✅ Zoom
1.0 – 1.35× Digital Zoom
✅ Focus
Manual Focus
✅ Keystone Correction
Vertical: ±3°
Horizontal: ±3°
✅ Quick Corner
Yes
Auto / Manual
✅ Interactive System
Infrared Interactive Technology
✅ Interactive Input
• 2 × Interactive Pens
• Finger Touch
• Up to 6-Finger Touch
✅ Interactive Features
• Advanced Whiteboard Function
• PC-Free Annotation
• Multi-User Collaboration
• Interactive Pen Support
• Finger Touch Support
• Split Screen
• Wireless Collaboration
✅ Laser Light Source Life
Normal: Up to 20,000 Hours
Quiet: Up to 20,000 Hours
Extended: Up to 30,000 Hours

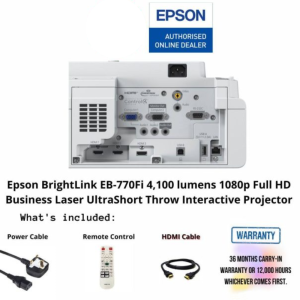

✅ HDMI
3 × HDMI
HDCP 2.3
✅ Computer Input
2 × D-Sub 15-pin
✅ Monitor Output
1 × D-Sub 15-pin
✅ USB
2 × USB Type-A
2 × USB Type-B
✅ Network
1 × RJ45 LAN
✅ Wireless
Built-in Wireless LAN
Wi-Fi Direct
Screen Mirroring
802.11 a/b/g/n/ac
✅ Audio
3 × Stereo Mini Jack Input
1 × Stereo Mini Jack Output
✅ Microphone
1 × Mic Input
✅ Speaker
Built-in 16W Mono Speaker
✅ Control
RS-232C
✅ Interactive Sync
1 × Stereo Mini Jack
✅ Finger Touch Unit
1 × Mini DIN 8-pin
✅ Installation
Ultra Short Throw
Wall Mount
Ceiling Mount
Tabletop Installation
✅ Noise Level
Normal: 37 dB
Eco: 27 dB
✅ Dimensions
395 × 356 × 133 mm
✅ Weight
Approx. 6 kg
⭐ Key Features
✔ 4,100 ANSI Lumens White & Colour Brightness
✔ Full HD 1920 × 1080 Resolution
✔ Ultra Short Throw 0.25–0.35 Ratio
✔ Up to 150″ Projection Without Interactive Function
✔ Up to 100″ Interactive Display at 16:9
✔ Interactive Pen Support
✔ 6-Finger Touch Support
✔ Advanced Whiteboard Function
✔ Multi-User Collaboration
✔ 21:9 & 16:6 Ultra-Wide Display
✔ Split Screen
✔ Built-in Wireless LAN
✔ Screen Mirroring
✔ 3 × HDMI Inputs
✔ RJ45 LAN
✔ 16W Built-in Speaker
✔ 3LCD Laser Technology
✔ Up to 30,000-Hour Laser Life
✔ Virtually Maintenance-Free
✔ Ideal for Classrooms, Training Rooms,
Interactive Learning, Education,
Meeting Rooms & Collaborative Workspaces
📦 Package Includes
- Epson EB-770Fi Projector
- USB Cable
- Easy Interactive Pen: 2 with 2xAA Battery
- Soft Pen Tip (Felt): 4
- Hard Pen Tip (Teflon): 2
- Pen Stand Set
- Corner Markers for Auto Screen Adjustment
- Magnet for Corner Markers
