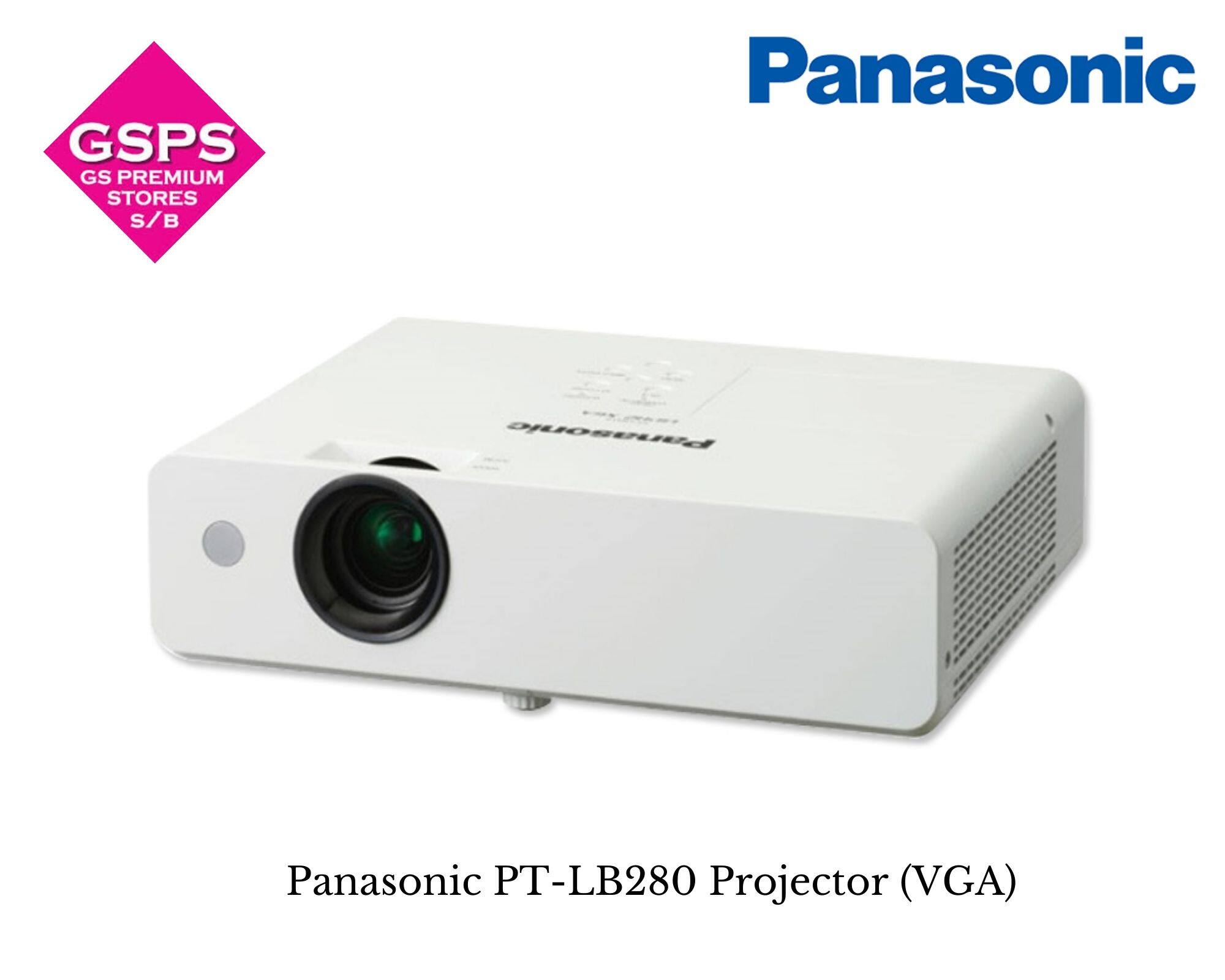

Panasonic PT-LB280 Projector (VGA)

Sale!

Panasonic PT-LB280 Projector (VGA)

RM2,599.00 RM1,780.00

  • Lens: 1.2x manual zoom
  • Display resolution: 1,024 x 768 pixels
  • Input: D-sub HD 15-pin(VGA) / HDMI
  • Power consumption: 300 W
  • Brightness(Lamp control: Normal): 2,800 lm

Out of stock

Compare
SKU: PAN PT-LB280 Category:

Share this product

2,800 Lumens brightness.10,000:1 contrast ratio.XGA ResolutionUp to 8,000 hour lamp replacement cycle.Daylight View Lite2.9 kg suitable for portable and installation use.Projection size from 30″ – 300″ diagonally.

AC 100–240 V, 50/60 Hz (other countries)
362 W
0.4 W
8W
0.59 inches (1.50 cm) (16:10 aspect ratio)
Transparent LCD panel (× 3, R/G/B)
1,024,000 (1,280 × 800) × 3, total of 3,072,000 pixels
1.6x manual zoom (throw ratio: 1.2–1.9:1), manual focus F 1.60–1.90, f 15.31–24.64 mm
270 W UHM lamp × 1
30–300 inches
5,000 lm (ANSI) (input signal: PC, lamp power: Normal, picture mode: Dynamic)
85%
10,000:1 (all white/all black) (input signal: PC, lamp power: Normal, picture mode: Dynamic, Iris: on)
1,280 × 800 pixels (Input signals that exceed this resolution will be converted to 1,280 × 800 pixels.)
525i (480i)*3, 625i (576i)*3, 525p (480p), 625p (576p), 750 (720)/60p, 750 (720)/50p, 1125 (1080)/24p, 1125 (1080)/24sF, 1125 (1080)/25p, 1125 (1080)/30p, 1125 (1080)/60p, 1125 (1080)/50p, 1125 (1080)/60i, 1125 (1080)/50iDisplayable resolution: VGA to WUXGA (non-interlace), Dot clock frequency: 25 MHz to 162 MHz
fH: 15 kHz – 91 kHz, fV: 24 Hz – 100 Hz, dot clock: 162 MHz or lower
fH: 15.73 kHz, fV: 59.94 Hz [525i (480i)]fH: 15.63 kHz, fV: 50 Hz [625i (576i)]fH: 31.47 kHz, fV: 59.94 Hz [525p (480p)]fH: 31.25 kHz, fV: 50 Hz [625p (576p)]fH: 45.00 kHz, fV: 60 Hz [750 (720)/60p]fH: 37.50 kHz, fV: 50 Hz [750 (720)/50p]fH: 33.75 kHz, fV: 60 Hz [1125 (1080)/60i]fH: 28.13 kHz, fV: 50 Hz [1125 (1080)/50i]fH: 28.13 kHz, fV: 25 Hz [1125 (1080)/25p]fH: 27.00 kHz, fV: 24 Hz [1125 (1080)/24p]fH: 27.00 kHz, fV: 48 Hz [1125 (1080)/24sF]fH: 33.75 kHz, fV: 30 Hz [1125 (1080)/30p]fH: 67.50 kHz, fV: 60 Hz [1125 (1080)/60p]fH: 56.25 kHz, fV: 50 Hz [1125 (1080)/50p]
fH: 15.73 kHz/15.63 kHz, fV: 59.94 Hz/50 Hz (NTSC/NTSC4.43/PAL/PAL60/PAL-N/PAL-M/SECAM)
Vertical 0–+48% from center of screen (manual), U/D ratio on top end: 49:1
Vertical: maximum ±35° (auto/manual, input: WXGA),Horizontal: maximum ±35° (manual, input: WXGA)
Front ceiling / Front desk / Rear ceiling / Rear desk
HDMI IN: HDMI 19-pin × 2 (Deep Color, compatible with HDCP), audio signal: Linear PCM [sampling frequency: 48 kHz/44.1 kHz/32 kHz]COMPUTER IN 1: D-sub 15-pin (female) x 1 (RGB/Y • PB (CB) • PR (CR)/S-Video)COMPUTER IN 2/MONITOR OUT: D-sub 15-pin (female) x 1 (RGB/Y • PB (CB) • PR (CR) (input/output switching))VIDEO IN: Pin jack x 1AUDIO IN 1: M3 jack (L/R) x 1AUDIO IN 2: M3 jack (L/R) x 1, compatible with MIC inputAUDIO IN 3: Pin jack (L/R) x 1AUDIO OUT: M3 jack (L/R) x 1 (monitor out: variable)SERIAL IN: D-sub 9-pin (female) x 1 for external control (RS-232C compliant)LAN: RJ-45 × 1 for network connection, 10Base-T/ 100Base-TX, compatible with PJLink™
4.0 cm round shape × 1, output power: 10 W (monaural)
37 dB (lamp power: Normal), 29 dB (lamp power: Eco)
Molded plastic
389 × 125*5× 332 mm (15-5/16 × 4-29/32*5× 13-1/16 in)
Approximately 4.8 kg (10.6 lbs)
Operating temperature: 0 °C–40 °C (32 °F–104 °F)*6(altitude: less than 1200 m), 0 °C–30 °C (32 °F–86 °F) (altitude: 1200 m–2,700 m) Operating humidity: 20 %–80 % (no condensation)
Wireless remote control unit × 1, Power cord with power cord holder x 1 (x 2 for UK and Asia), Software CD-ROM × 1 (Operating instructions, Multi Projector Monitoring and Control Software, Logo Transfer Software, Wireless Manager ME 6.2 software [PT-VZ575N/VW535N/VX605N only]), Batteries (AAA type × 2), RGB cable, Lens cap x 1
*1 When the Standby Mode is set to Eco, network functions such as Power On via LAN will not operate. Also, only certain commands can be received for external control using the serial terminal.*2 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.*3 Pixel-repetition signal (dot clock frequency: 27.0 MHz) only.*4 Average value. May differ depending on the actual unit.*5 With legs at shortest position.

*6 When operating temperature is between 35 °C and 40 °C, lamp power automatically switches to Eco in order to protect the projector.
